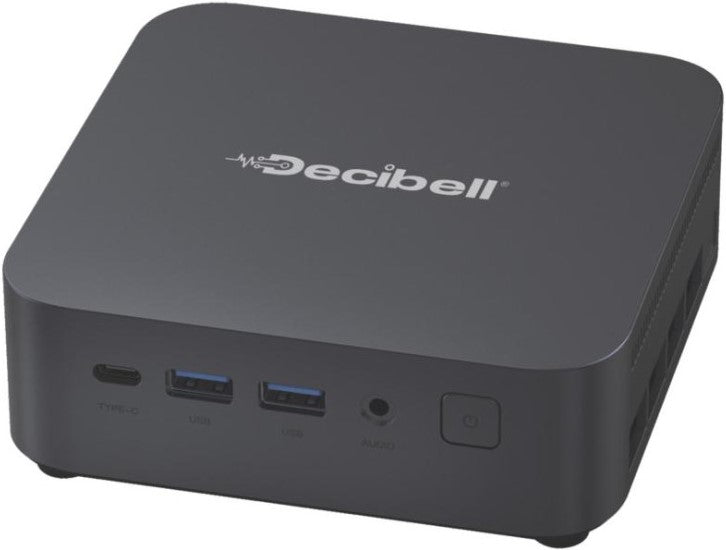

Decibell N3ES AMD Ryzen 5 Professional Mini Desktop

Decibell N3ES AMD Ryzen 5 Mini Desktop PC - AMD Ryzen 5 PRO 7430U Processor (6 cores, L1 384KB, L2 3MB, L3 16MB Cache Up to 4.3GHz, 12 Threads) Processor Architecture Zen 3, 16GB DDR4 Memory 3200MHz (SO-DIMM DDR4 x2, Up to 64GB), 512GB M.2 2280 NVME PCLe SSD, AMD Radeon Graphics, Windows 11 Pro, 1 year warranty

Product Overview

Decibell AMD Ryzen 5 7430U Mini PC Ultra-compact (128x128x41.3mm, PC+ABS case) with 6-core/12-thread Zen 3 processor (2.3GHz base, 4.3GHz boost), Radeon Graphics (7 cores, 1800MHz), and up to 64GB DDR4-3200 SO-DIMM. Rich I/O: 6x USB (2.0/3.0/3.1 Type-A), HDMI 2.0/DP 1.4/Type-C (10-40Gbps+4K display), 2.5G Ethernet, WiFi 6+BT 5.2, M.2 NVMe SSD (up to 2TB) + 2.5" HDD/TF support. TPM 2.0, UEFI diskless boot, 0-45°C operation, Win11 Pro—ideal for multi-monitor productivity, kiosks, or silent computing with 19V/6.3A DC power.

Specifications

•Product Code: N3ES-R5-16-512-PRO
•Description: Decibell N3ES Mini Desktop PC
•Product Type: Mini PC
•Dimensions: 128 × 128 × 41.3 mm
•Case Material: PC + ABS
•Operating System: Windows 11 Pro
•Processor Model: AMD Ryzen™ 5 7430U
•Family: Ryzen
•Series: Ryzen 7000 Series
•Architecture: Zen 3
•CPU Cores: 6
•Threads: 12
•Base Clock: 2.3 GHz
•Max Boost Clock: Up to 4.3 GHz
•L1 Cache: 384 KB
•L2 Cache: 3 MB
•L3 Cache: 16 MB
•SMT (Multithreading): Supported
•AMD PRO Technologies: No
•Graphics Model: AMD Radeon™ Graphics
•Graphics Core Count: 7
•Graphics Frequency: 1800 MHz
•Max Shared GPU Memory: 2 GB
•DirectX: Version 12
•OpenGL: Version 4.6
•OpenCL: Version 2.2
•DisplayPort Version: 2.0
•Memory Type: SO-DIMM
•Memory Slots: 2 × DDR5
•Memory Speed: DDR4 3200 MHz
•Maximum Capacity: Up to 64 GB
•SSD Support: Up to 2 TB
•SSD Type: M.2 2280 NVMe PCIe ×2
•2.5" HDD Support: Not supported
•TF Card Slot: Not supported
•RTC Support: Real-time clock, timed power-on
•Auto Power-On: Supported
•Diskless Network Boot: UEFI diskless boot supported
•TPM: TPM 2.0 (CPU integrated)
Video Outputs:
•HDMI ×1
•DisplayPort ×1
•USB Type-C ×1
•Maximum Displays: Triple display support
•USB Type-A: USB 3.1 Type-A ×6
•USB Type-C: ×1 (Data 10/40 Gbps, Display 4K @ 60Hz)
•HDMI: HDMI 2.0 ×1
•DisplayPort: DP 1.4 ×1
•VGA: Not supported
Ethernet:
•RJ45 ×1
•10/100/1000 Mbps / 2.5G adaptive
Wi-Fi:
•Module: M.2 E-Key
•Standards: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
•Bluetooth: Version Bluetooth 5.2
•Audio Jack: 3.5 mm combo jack (Audio-in / Audio-out)
•Power Supply Type: External desktop adapter
•Input Voltage: 100–240V AC, 50/60Hz
•Output: 19V / 6.3A
•DC Jack: 5.5 × 2.1 mm
