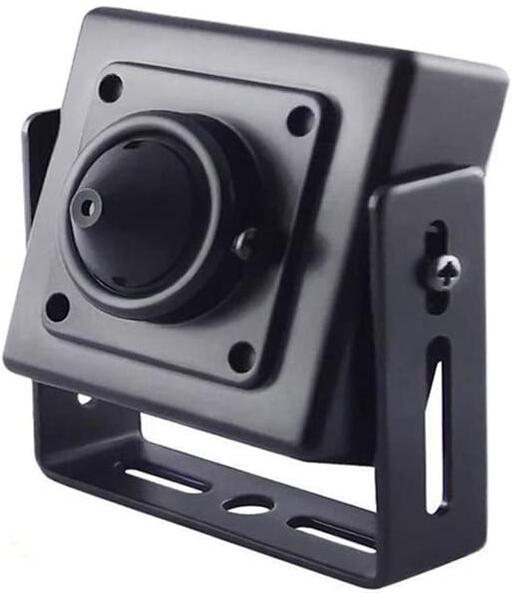

Vandsec Mini IP Camera Series

Vandsec 2MP Mini IP Camera - 2MP Camera, 1 x RJ45 Port Video Output, Onvif Support, Support Gmail/Google/QQ/Email, Plug And Play, Support Smart Phone And Tablets, OSD, Motion Detection, Remote View And Control, -10℃~ +60℃ Working Temperature.

Product Overview

Vandsec VN-BP Mini IP Camera Series Ultra-compact pinhole camera (40x27x40mm, 180g) with 2-8MP variants (IMX307/SC8239 sensors), 3.7mm lens, 0.001Lux low-light, and AI features including humanoid detection, DWDR, 3D-NR, defog. RJ45 PoE-optional network with ONVIF, motion detection, smartphone remote view/control, Gmail alerts—ideal for discreet surveillance in tight spaces (-20~60°C). Multiple models (VN-BP20/30/40K/50K/50S/80/80T) for 1080p-4K needs, DC12V/<5W power—perfect for hidden covert monitoring or small-area security.

Features

•Mini IP Camera
•Video Output: 1 x RJ45 port
•Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
•PNP(Plug and Play), support smart phone & tablets
•OSD, Motion Detection, Remote View and Control
•Working Temperature: -10℃~ +60℃

Specifications

•Product Code: VN-BP20C
•Description: Vandsec VN-BP Mini IP Camera Series
•Image Sensor: 1/2.8" SONY IMX307 + GK7205V200 – 2.0MP Starvis
•Effective Pixels: 1920(H) × 1080(V) – 2MP
•Video System: NTSC / PAL
•Minimum Illumination: 0.001 Lux
•Lens: 3.7mm Pinhole Lens
•Video Output: 1 × RJ45 Ethernet Port
Network
•1 × RJ45 Ethernet Interface
•10/100 Mbps Adaptive Ethernet
•Protocols: ONVIF Compatible
•Internal Synchronization
•Scanning System: 2:1 Interlace
Shutter Speed
•NTSC: 1/60 ~ 1/100,000 sec
•PAL: 1/50 ~ 1/100,000 sec
•Signal-to-Noise Ratio: ≥ 58 dB
•Digital WDR (DWDR): Yes
•3D Digital Noise Reduction (3D-NR): Yes
•AI Defog: Yes
•AI Humanoid Detection: Yes
•Temperature: -20°C to 60°C
•Dimensions: 40mm × 27mm × 40mm
•Weight: Approx. 180g
